Are you looking for a Best Aadhaar Based Biometric Providers
Your Search Ends Here

Aadhaar Based Biometric

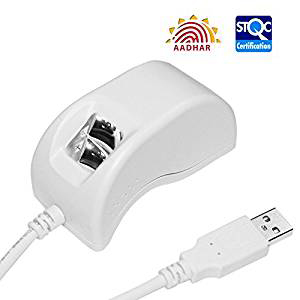

FM220U is a CMOS-based, optical fingerprint reader that is used in a variety of national government programs and private sector industries.

The device is capable of performing fingerprint image capture in 0.2-0.4 seconds. When combined with Startek SDK fingerprint matching software, identification can be performed in less than 0.5 seconds.

Conforming to strict US PIV specification standard (FAP10), FM220U is also the best choice for the secure identification of government workers and contractors.



Features

  • ISO compliant
  • Low image distortion – Startek’s FM220U is less than 1%.
  • Fast scanning & matching speed
  • Choice to set different security levels for different application FRR/FAR demand
  • Non-distorted image quality
  • Small template size
  • Real-life applications - no problem in verifying smeared, scarred, stained and smudged fingers
  • Support verification on various server platforms

Seneors CMOS sensor
Scanning 1/15 second
Image resolution 500 dpi (H),500 dpi(V) (600dpi optional)
Image capture format 13.3 x 16.4(mm) (H * V)
Scanner output image size 264 * 324 pixels(H * V)
Gray Level 8bits/pixel,max 256 gray scales
Image ratio of length to width 1 : 1
Scanner interface cable Standard USB compliant cable
Power supply 1 watt approx(from USB port)(200mA,approx,standby:60mA)
Minimum hardware requirement P3 800MHz CPU or up,256MB,USB2.0
Dimension 80mm (L) x 41mm(M) x 40mm(H)
Weight 100g(Approx)
Distortion <1%
Temperature(without external enclosure) 0°C~50°C
Humidity <90% non condensing
Scanning light source infrared red (940nm)
Operating volts +5V Tolerance 5% (USB connector)
ESD 15KV
